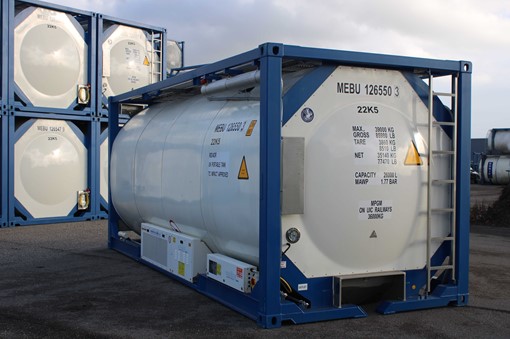

EVERYTHING YOU NEED TO KNOW ABOUT THE 20FT REEFER TANK
About the refrigeration cooling unit build on reefer tank container (25.000L)
The fully electrical cooling unit is designed to be fully fitted within the constraints of the ISO 20ft framework. The unit is equipped with phase monitoring, which always ensures the correct rotation. Optionally, the reefer tank unit can be designed with 5000 Watt or 9000 Watt heating.
The benefits:
- Fits within the ISO 20ft reefer tank container framework
- High refrigeration capacity, 7000 Watt at 0°C
- Weighs only 270 kg
- Because of the high circulation speed there will be no problems with trapped air
- Reduced chance of damage compared to a seperate reefer unit
SPECIFICATIONS:
- Price On request
- Capacity 15000 – 26000 litres
- Usage Food stuff liquids
- Max. weight 36000 KG
- Container type Reefer Tank
- Size 20ft
- Compartments 1
- Heating system Reefer Unit
- Insulation 50-150mm
- Discharge type Foodgrade valve
- Certificate CSC/IMO
TECHNICAL DATA
| Refrigeration capacity at 0°C (under ATP conditions) | 7000 Watt |
| at -10°C (under ATP conditions) | 4100 Watt |
| Heating (optional) | 5000 Watt or 9000 Watt |
| Power Current | 380V/50Hz, 440V/60Hz |
| Connection | Container connection 32A/4P |
| Required capacity | 16A, 3 phase |
| Weight | 270 kg |
